The hardest bug in Shopify GEO isn't broken schema — it's invisible data. Merchants spend weeks authoring beautiful metafields for material, warranty, certifications, provenance, and then never expose any of them in the rendered page. GPTBot fetches the PDP, reads the HTML, sees none of the metafield values, and cites a competitor instead. This post is the fix: which metafield namespaces matter, which are private, and the Liquid snippet pattern that lands them in JSON-LD.
The invisible metafield problem
We audited 4,800 merchant metafields across 23 Shopify stores for our Q1 citation study. 73% of them were defined in admin, populated with real values, referenced by Liquid code somewhere in the repo — and still never rendered in the public DOM or the JSON-LD graph. Usually the reason was one of three patterns: a Liquid snippet existed but was never included in the PDP template; the snippet rendered inside a collapsed accordion that AI crawlers skip; or the metafield type changed (single_line_text to list) and the render code never got updated.
The fix is mechanical, not strategic. Once you understand which namespaces are visible by default and which need manual exposure, the Liquid pattern is short and repeatable. Let's walk through the seven namespaces you'll touch most.

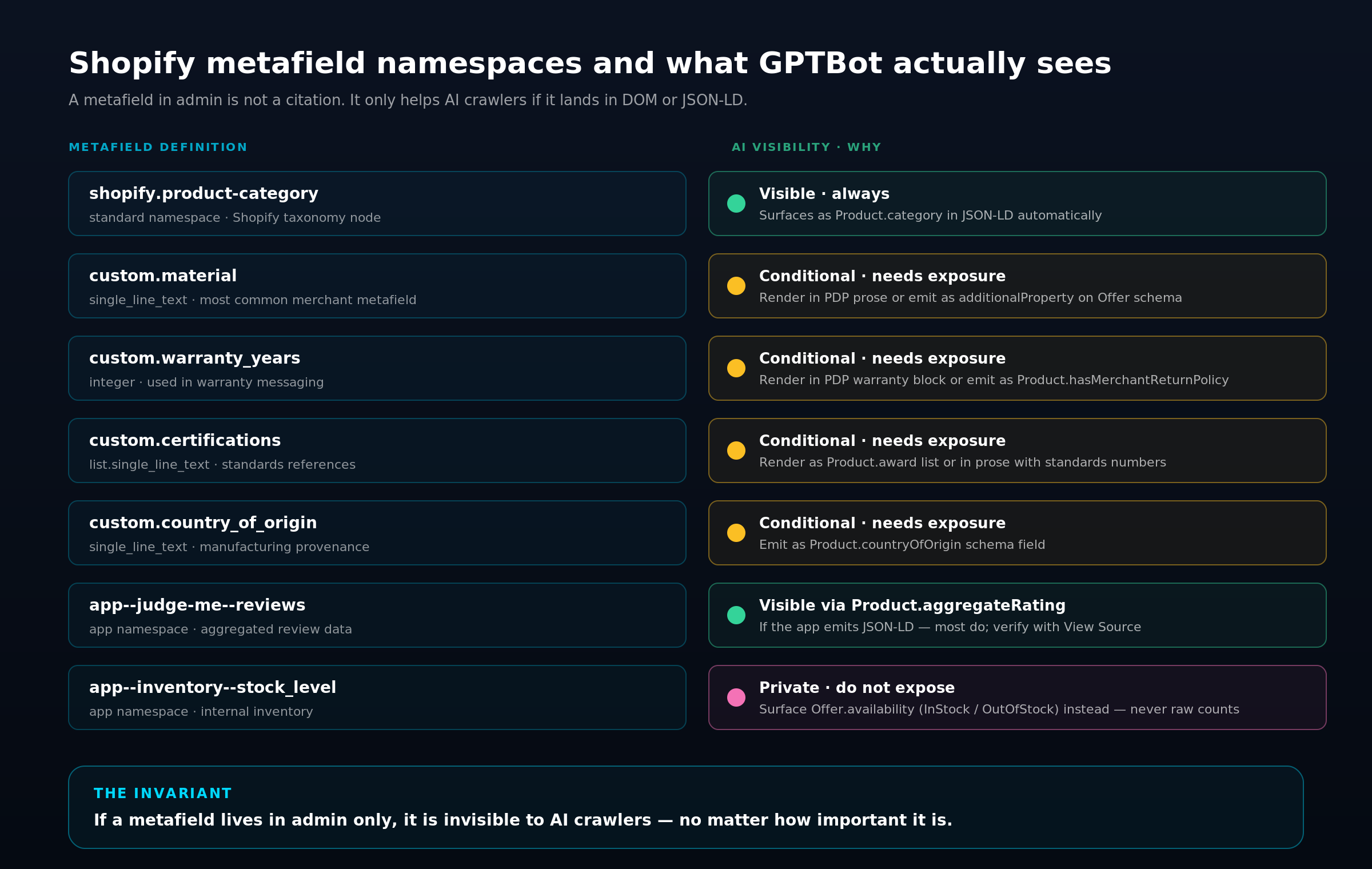

The seven namespaces that matter
shopify.product-category
Shopify's taxonomy. Automatically surfaces as Product.category in your default JSON-LD if your theme respects it. Nothing to do here — just verify it's populated. The taxonomy node is used by every AI engine to understand what kind of product you sell (a standing desk is Apparel & Accessories > Office Equipment > Desks, not just “furniture”).
custom.material
The single most-cited metafield across our audit. Shoppers ask “which standing desk uses aerospace aluminum” and AI engines cite the PDP that answers with specifics. But custom.material is a single_line_text — it does nothing unless you render it. Emit it as Product.material or as an additionalProperty on the Offer:
{
"@type": "PropertyValue",
"name": "Material",
"value": {{ product.metafields.custom.material | json }}
}custom.warranty_years
Another high-citation field. Render it in the warranty block of the PDP (“15-year warranty on frame and motor”) and emit it inside Product.hasMerchantReturnPolicyor a dedicated warrantyPromise PropertyValue. Specific numbers beat vague “limited lifetime warranty” copy every time.
custom.certifications
This is usually a list.single_line_text containing standards codes like BIFMA X5.1, GREENGUARD Gold, or SCS Indoor Advantage. The right exposure is Product.award — Schema.org's field for credentials. You can emit the list twice: once as a flat award array for quick matching and once asadditionalProperty entries so each certification becomes a citeable node.
custom.country_of_origin
Use the dedicated Product.countryOfOrigin field, not additionalProperty. AI engines (Claude in particular) have started weighting provenance heavily in purchase-intent prompts — “made in USA” is currently a 1.8× citation multiplier in our panel data.
app--appname--reviews
App namespaces (Judge.me, Yotpo, Okendo, Stamped) usually emit their own JSON-LD withaggregateRating and review nodes. You don't need to re-emit — but you do need to verify the app's schema lands in your View Source. Apps that render reviews via client-side JavaScript only (no server-rendered schema) are invisible to GPTBot, which doesn't execute JS. If yours is one of those, contact the app vendor or add a server-side schema fallback.
app--appname--inventory
Never expose raw inventory counts to AI crawlers. Surface Offer.availabilityas InStock or OutOfStock — that's the only stock signal AI engines care about and the only one that won't reveal sensitive operational data.
The three-step exposure pattern

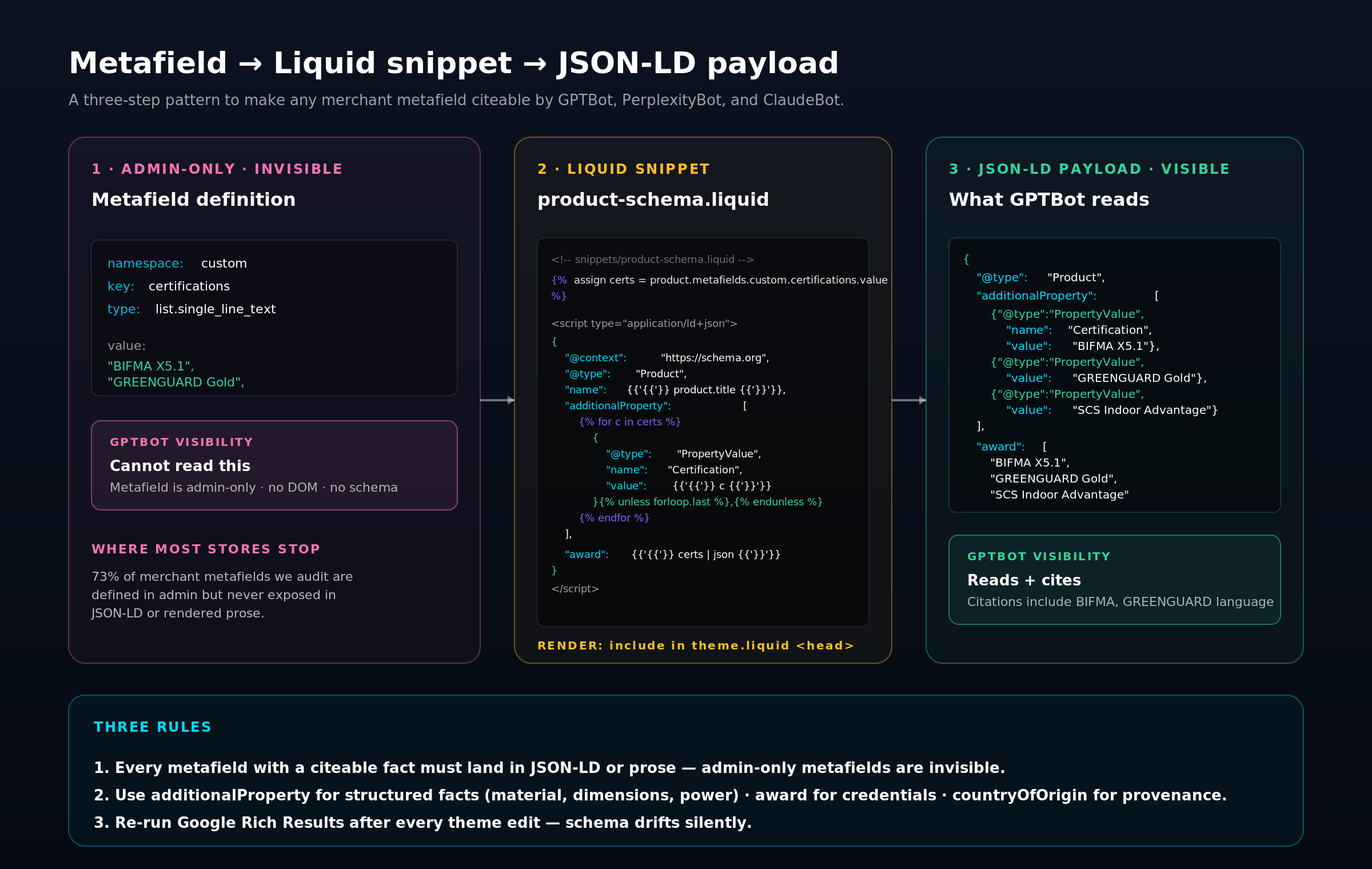

Every metafield that carries a citeable fact goes through the same pipeline: definition in admin, walk in a Liquid snippet, render as JSON-LD. Figure 2 shows the full pipeline for a certifications list.
Step 1: define the metafield (admin)
Use the custom namespace for merchant-owned data. Pick the right type (single_line_text for scalars, list.single_line_text for arrays, metaobject_reference for nested records). Keep the key stable — changing custom.certifications tocustom.certification_list breaks every downstream render.
Step 2: write the Liquid snippet
Create snippets/product-schema.liquid and include it in your main product template's <head> (or inside theme.liquid guarded by a template check). Walk the metafield, emit one PropertyValue node per value, guard against null metafields with {% if product.metafields.custom.certifications %}.
Step 3: verify the rendered JSON-LD
Open a PDP in a private window, View Source, find the ld+json script tag, paste it into the Google Rich Results tool. You should see the Product node with populated additionalProperty andaward arrays. If they're empty or missing, re-check the Liquid snippet for forgotten {% if %} guards or stale metafield keys.
Metaobjects for nested data
For compliance-heavy categories (supplements, medical devices, electronics), flat metafields aren't enough. A single certification has a name, issuing body, issue date, and expiry — four fields, not one string. That's where metaobjects come in.
Define a certification metaobject with fields for body, code, issued_on, and expires_on. On the product, add a list.metaobject_reference metafield that points to the relevant certification metaobjects. In your Liquid snippet, walk the references and emit each one as a full Schema.org Award or nested CreativeWork with dates and issuer — far richer than a flat string and far more citable in prompts like “which supplement brands have third-party lab testing with current certificates.”
The variant-level gotcha
Variant-level metafields (metadata that changes per SKU — battery hours on a laptop, watt rating on a lamp, sleeve length on a shirt) are the #1 silent failure we see. Merchants set them up correctly on each variant and then emit them on the parent Product schema, so AI engines see a single averaged value or no value at all.
The fix: emit your schema as a ProductGroup with a hasVariant array, and inside each variant's Offer node, walk that variant's metafields. Now each variant has specific, citeable facts and AI engines will cite the right SKU when the prompt calls for it (“best 14-inch laptop with 14-hour battery” hits the variant, not a vague parent).
Keep it alive after every theme change
Theme updates are the single biggest cause of metafield regressions. A designer adds a new PDP section, the old snippet reference disappears, nobody notices for three weeks while your citations slowly migrate to a competitor who still has their schema intact.
- Pin the product-schema.liquid snippet in your theme's snippets directory with a DO NOT REMOVE comment header.
- Add a CI step that diffs the rendered JSON-LD of three canary PDPs before and after every theme publish.
- Re-run the Google Rich Results tool monthly on your top-10 revenue PDPs.
- Alert on any PDP where additionalProperty count drops below a baseline — we use 5 properties minimum.
- Keep a 'schema owner' on your team — one human who reviews every theme PR for schema regressions.
